Site Preparation*

Model

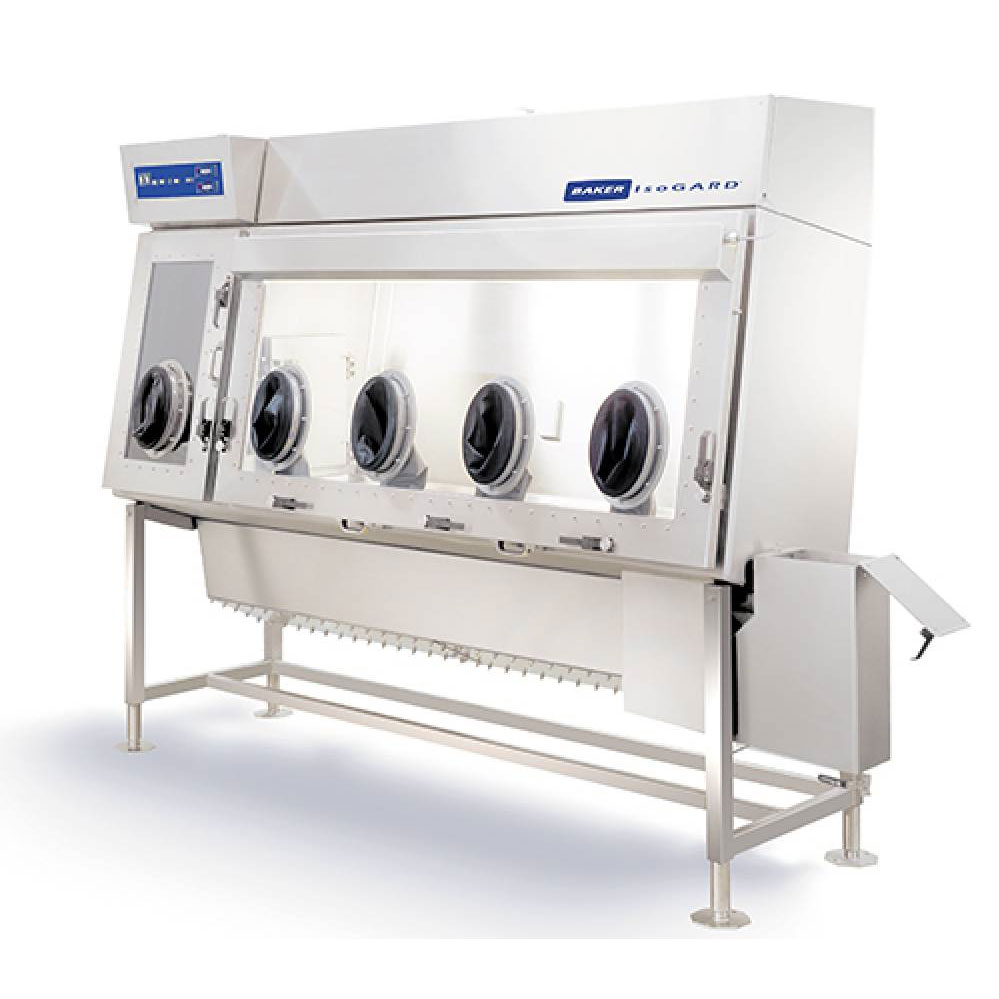

IsoGARD® Model IG-14

IsoGARD® Model IG-13

IsoGARD® Model IG-12

Electrical System

115 VAC, 20 amps, 1-phase
using supplied 12’ power cord
or a hard connection with
supplied junction box

115 VAC, 20 amps, 1-phase
using supplied 12’ power cord
or a hard connection with
supplied junction box

115 VAC, 20 amps, 1-phase
using supplied 12’ power
cord or a hard connection
with supplied junction box

Exhaust Requirements

350 CFM at negative 2.5"
water column static

300 CFM at negative 2.5"
water column static

250 CFM at negative 2.5"
water column static

Glove/Working
Chamber Dimensions

4-glove, 78" working
chamber, 2’ pass-thru

3-glove, 60" working
chamber, 2’ pass-thru

2-glove, 42" working
chamber, 2’ pass-thru

*Note: Following installation, Class III equipment must be tested in place by a qualified 3rd party technician prior to use. Tests include tracer gas leak testing and other performance verification as recommended by the manufacturer.
