Specifications
SUMMARY
From microliters to liters - continuous or intermittent
압력이 없는 atomization - low velocity mist
overspray를 최소화 시켜서 물질을 분산시킴
저렴한 가격으로 atomizing probe 교체 가능
대기에 의한 오염을 최소화 함
고장이 거의 없음
Application
Coating non-woven fabric, paper, etc.
Laboratory spray drying
Injecting moisture into a gas stream
Applying minute amount of oil, fragrance or flavor onto a product
Injecting small volume of reagents into a reactor

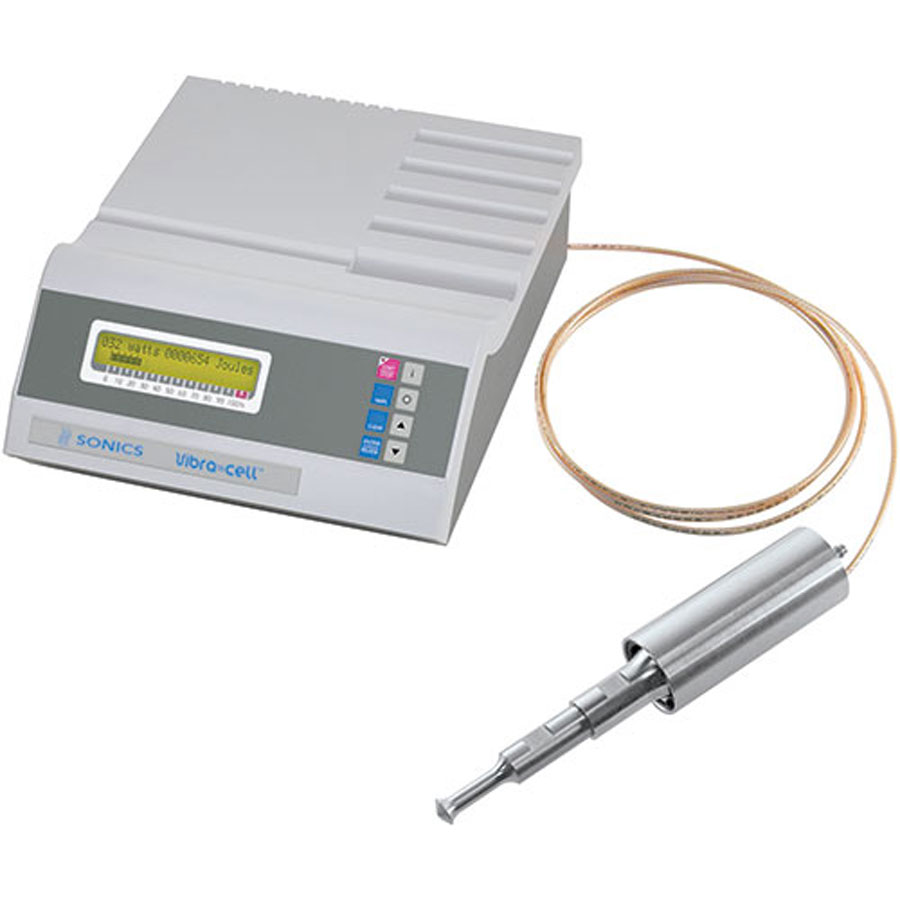

POWER SUPPLY
Net power output: 50 Watts. Frequency: 20 kHz (Model VC 5020 AT), 40kHz (Model VC 5040 AT)
Dimensions (HxWxD): 4(1/2)" * 9(3/4)" * 12(1/2)" (115 x 250 x 320 mm)
Weight: 3 lbs. (1.4 kg)
CONVERTER
Piezoelectric lead zirconate titanate crystals (PZT)
20 kHz - Model CV18. Compatible with VC 5020 AT
40 kHz - Model CV24. Compatible with VC 5040 AT
Diameter: 1(1/4)" (32 mm)
Length: CV18 - 5(3/4)" (146 mm) , CV24 - 4(3/4)" (121 mm)
Weight: 3/4 lb. (340g)
Cable length: 5´ (1.5 m)
STANDARD ATOMIZING PROBE
Orifice 3/22" (2.3 mm). Threaded port #10-32 UNF thread. Titanium alloy Ti-6AL-4V.
Autoclaveble. Tubing required: 5/32" (4 mm) inside diameter.
20 kHz : 630-0437
40 kHz : 630-0499
