Features
까다로운 실험실의 요구에 부흥하는 온도 안정성의 의료용 냉장고
Microprocessor controlled
An electronic sensor accurately monitors chamber temperature and feeds the information to the microprocessor for precise control at preset temperature. Fans ensure gentle air circulation to provide uniform top to bottom temperature control after frequent door openings. Panasonic’s easily calibrated, reliable and stable controls make validation easier.
Remarkable cooling efficiency
A highly efficient hermetic compressor, specially designed and developed by Panasonic, is utilized to provide powerful and rapid cooling to maintain proper temperature level.
Plenums
Panasonic’s plenum design features uniform cold air flow distribution throughout the chamber to ensure temperature uniformity— essential for validated storage requirements.
Ergonomic design
The ergonomic design of the MPR series refrigerators provides a clear view of stored items through the large framed windows. The slim profile allows for easy-reach retrieval of your products. Users can choose from two types to suit their needs; one with all wire shelves or one with sliding racks on one side.
Double-sensor temperature management
The double-sensor control system with alarm-exclusive sensor added to the temperature control sensor always monitors the precise chamber temperature.
Safety is a Panasonic standard
Even the best designed refrigerator must be prepared for the unexpected.
- Cabinet construction
View Window design with protective film to prevent shattered glass from scattering onto the floor. Also features key locked doors.
- Control safety devices
Audible and flashing LED visual alarms alert you to the unlikely event of either a high or low temperature condition. An over-shooting prevention circuit automatically switches off the fan motor or heater, if the inside temperature rises abnormally.
- Comprehensive alarms
In addition to Low/High temperature alarms and door ajar alarm, power failure alarm can be installed as an option. Remote alarm terminal is also provided as standard.
Worry-free cycle defrosting system
With Panasonic’s cycle defrost system, defrosting is performed automatically during compressor “off” cycles, and by sensing frost levels. This way defrosting is performed only when required, further protecting the contents against unnecessary temperature rise. The defrosting heater also acts as an emergency heat source to prevent samples from freezing.
HFC refrigerant & HCFC-free insulation
Panasonic biomedical equipment is designed for low environmental impact. The MPR-514 and 1014 series use HFC refrigerant and the foamed-in-place insulation is HCFC free.
Data Acquisition System (optional) The Data acquisition system enables remote monitoring of pharmaceutical refrigerators.
Standard Type with Large Cabinet
Features
- Stable, uniform and controlled cabinet temperature is unaffected by ambient temperature
- Cycle defrost with heater allows defrosting without rise in cabinet temperature
Specfications
| Product Series Name | Pharmaceutical Refrigerators |
|---|---|
| Model | MPR−514R |
| External Dimensions | 900 x 600 x 1790 (mm) / 35.4 x 23.6 x 70.5 (inch) |
| Internal Dimensions | 800 x 465 x 1300 (mm) / 31.5 x 18.3 x 51.2 (inch) |
| Effective Capacity | 486 liters (17.2 cu.ft.) |
| External Cabinet | Galvanized steel with baked on finish |
| Internal Cabinet | Stainless steel |
| Outer Door | 2 sliding doors, Double layer glass with heat reflection film |
| Insulation | Rigid polyurethane foamed-in-place (HCFC free) |
| Shelves & sliding racks | 5 polyester-coated wire shelves Load: 20 kg per shelf, 5 polyester-coated sliding racks Load: 20 kg per rack |
| Drawer | - |
| Access port | - |
| Outer door lock | 1 |
| Cooling method | Forced cool air circulation |
| Compressor | Hermetic type, output: 200 W |
| Evaporator | Fin and tube For cooling: output 3 W x 1 |
| Condenser | Wire and tube, Tube on sheet |
| Refrigerant | HFC |
| Defrosting | Forced type, fully automatic |
| Defrost Heater | 73.8 W x 2 |
| Net weight | 147 kg (313 lbs) |

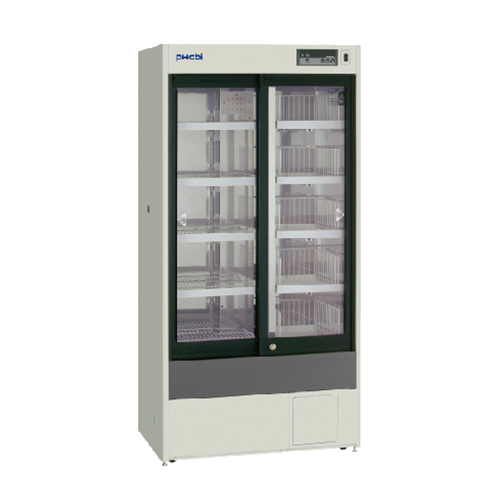

MPR-514
