제품 정보 "CryoStar I"

(프린터가 없는 단일 시료 장치), 자동 냉동기,

빙점 측정기

• 대형 터치스크린
• 새로운 냉각 시스템
• 사용자 친화적이고 빠르고 정확하며 견고합니다.


측정 중에 동결 곡선이 그래픽 컬러 디스플레이에 표시됩니다.

이는 표준(DIN/ISO/IDF 5764)에 규정된 것을 허용합니다.

고원 검색은 모범적인 방식으로 관찰, 기록 및 입증되었습니다.

크기(WxDxH): (340x330x290)mm,무게: 8.7kg

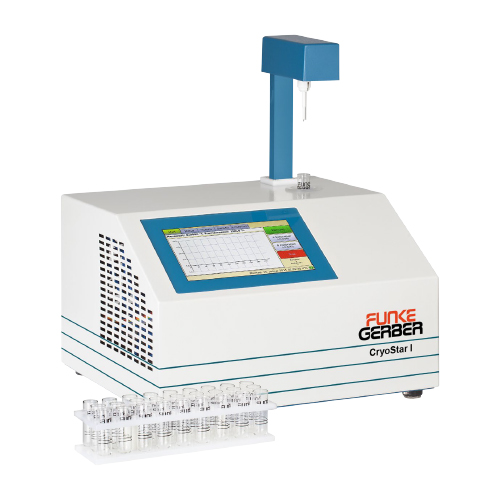

Automatic Cryoscope
Single sample device
Reference method DIN/ISO/IDF 5764
Big Touch Screen
New Cooling-System
Easy to use, fast, exact and robust

Specifications:

Designed for the future, flexible: Fixed time measurement,
plateau and maximum search functions. You can freely
program all relevant parameters. These will of course be
recorded. And the CryoStar can also be set to conform
with all national and international standards
(including future ones)

Easy to use: The operation is menu guided on the touch
screen in the language of your choice. German and English
are currently available.

Sure Performance: The reliable cooling system ensures
rapid operational readiness even in high-temperature
environments (max. approx. 34°C).

Fast: Depending on actual setting used, up to 40 samples
can be measured per hour.

Versatile: The CryoStar is equipped with a serial connection
for standard printers und an USB port for connections to
a PC. Measured values can be saved an an USB-drive for
further processing

Handy: The CryoStar is small, light and easy to handle.
The percentage of added water content is directly
displayed and printed. The calibration
is carried out automatically. All settings
and calibration values are retained in
a non-volatile memory.

Supply: 230V/115 V AC (50...60 Hz), 180 VA
Measuring resolution: 0,0001°C ( 0,1 m°C )
Repeatability: ± 0,0020°C ( ± 2,0 m°C )
Measuring range: 0,0000°C to -1,5000°C
Sample volume: 2,0 ml to 2,5 ml
Sample rate: up to 40/h typically 30/h
Interfaces: 2x serial, 2x USB, Ethernet
Cooling-off time: approx. 15 Min.
Display: 7“ graphic color touch display,
showing freezing curve,
measurement result [°C],
[% added water] date, time,
measuring conditions
Record Print: measurement result [°C],
[% added water] date, t
